Sorting Out Biostimulants

Plants.pngA large amount of venture capital is being invested in agricultural biologicals, with biostimulants in particular gaining much traction. Such products might be used by growers to help improve nutrient-use efficiency, assist plants in tolerating heat or drought stress, or help improve crop quality traits like nutritional content, appearance, or shelf-life. But despite the proliferation of new products and technologies, there is currently no agreed upon regulatory definition for biostimulants in the United States, which can make it tricky for growers to sort them out.

In a recent interview with Biocontrols USA WestDavid Lanciault, President and CEO of Agricen Sciences, explains that biostimulants are a very diverse and growing group of products.

“There are probably 30 or 40 different classifications or products you could rattle off," Lanciault says. "But it is probably easiest to aggregate those into four big segments.”

Broadly speaking, those segments are:

  • Acids (including organic acids like humic and fulvic acids, as well as amino acids)
  • Extracts (including organic matter extracts like seaweed extracts, plant extracts or botanical oils)
  • Microbials (including soil fungi and bacteria that help to improve nutrient cycling/soil availability, or that aid a plant’s ability to uptake and use nutrients)
  • Other (materials such as proteins, chemical salts, vitamins, elements, and small molecules or metabolites derived from organic sources)

“It is important to learn whether or not the product has been validated by an appropriate source like Extension, crop consultants, or other qualified agronomists. Make sure this validation was applied research, and not just what may work in a lab,” Lanciault adds. “It is very important that growers understand how these products augment what they already are doing from not only an agronomic standpoint, but also from an economic standpoint.”

Read the full article, "Biostimulants Quickly Gaining Ground with Growers.

You can also learn more about biologicals and biostimulants for agriculture by downloading the "Growing for the Future" booklet.

Access the Booklet

Posted in Biostimulants

Biologicals Growing Bigger

Agricen_sciences_laboratory

Biostimulants and biofertilizers are now joining biopesticides as technologies that have proven themselves as delivering benefits to growers. As acceptance grows, more and more biological-based products are being introduced to the market from companies of all sizes.

Dave Lanciault, President and CEO of Agricen Sciences, sees this as a growing trend, and suggests that bio-based products can play an important role as part of a systems approach to the way growers manage plants and the microbial ecology that surrounds them.

You can read the full story at Corn & Soybean Digest.

Read the Story



Posted in Biostimulants, Agricultural Productivity, Soybeans, Corn

A Seed’s Territorial Conquest Begins! (And It Just Might Be Led By Its Roots)

By Maud Hinchee, PhD, Chief Science Officer, Agricen Sciences

Seedlings

Image yourself a seed, outfitted for long-term survival in the dry and dusty seed bin. Like a bear in hibernation, you have slowed down to essentially suspended animation…waiting for the message to wake up. The first wake-up call? Water.

Once planted, only the presence of continuously available water enables your complete revitalization. Much like a bear waking up from hibernation, you are able to now use your remaining food reserves—stored in your cotyledon and endosperm “survival kits”—to generate enough energy to check out your surroundings. You can now sense moisture, light, and temperature, and determine the safety of emerging from your seed coat “cave”.

It is now the seed versus the world. For the seedling, survival requires “selfish” decisions to win the campaign for water, nutrients, light and space. The growth and development decisions made now and in the future will make or break a seedling’s success, and will be the key to ensuring that it—and not its competitors—gains the prize of plentiful progeny for generations to come.

The spearhead of the seedling’s first sortie into the world is its emerging root. Root growth rate and direction is not random—it is directed by signals from the environment. But what is the root sensing? What decisions is it making? Can we say that the root is demonstrating “intelligence”?

The “Root Brain”

Paco Calvo Garzón of the University of Murcia inSpain and Fred Keijzer of the University of Groningen in Netherlands propose in the journal Adaptive Behavior that one could potentially consider the portion of the root that controls its growth as acting like a “root-brain”, with decision-making capacity.

Scientists are now discovering that the transition zone, found between the region of cell division and cell elongation in the root tip, receives and integrates multiple sensory signals in response to environmental cues. The root responds to these cues by adjusting its growth rate, direction and control of lateral branch root position to achieve additional footholds that ensure maximal access to water and nutrients. A good look at this control point in the root can be seen in this microscopic time-lapse view of a growing root generated by Giovanni Sena (New York University) and Zak Frentz (Rockefeller University) and described in their 2011 publication in PLoS One.

The initial root emerging from the seed needs to move quickly into soil and establish branch roots. Root architecture is the result of the transition zone’s decision as to which cells divide or elongate. Cell division and elongation are the means by which a root can change how fast and where it moves through the soil. The elongating cells behind the actively growing cells of the root apex essentially push the growing point forward. Where the cells elongate affects root direction. A root changes its path much like a military procession that makes a corner – those marchers on the outside need to increase the length of their stride while the inside marchers just march in place. A similar thing happens in the transition zone, where cells on the outside elongate more than the ones on the inside to make a bend. Time-lapse photography by Matthew Thompson and Michele Holbrook of Harvard University shows how a root redirects its growth when it comes in contact with a high friction gel surface (think experimental version of a “rock”), also described in their 2004 Plant Physiology publication.

Plant Hormones: The “Neurobiology” Behind Root Response

Researchers have shown that the hormone auxin—in partnership with the other plant hormones cytokinin, ethylene and gibberellin—is crucial in the root’s perception and response to environmental signals. It is the balance of transported auxin (produced in the growing shoot moving towards the root tip) with transition zone-produced auxin that controls the timing and rate of cell elongation and dictates the future potential sites for the production of lateral roots. In 2010, the laboratory of Jiří Frimlat Ghent University, Belgium, showed that auxin interacts with plant cell membranes in a manner similar to processes found in the synapses of animal nervous systems, indicating a commonality in signal transduction that is a highly evolutionary conserved process. This finding basically means that signal transduction in plants has similarity to the neurobiology of animals.

Bolstering Root Growth Potential

The internal complement of phytohormones can be off balance, and not sufficient to promote the necessary root growth and territorial gain needed for survival. However, the plant can call in allies to bolster its root growth potential. In a microscopic barter, roots exude carbohydrates that act as food offerings to soil microbes who in turn accommodatingly produce auxins that are then consumed by the plant as a supplement. In this way, these microbes are essentially providing support to the plant in its goal to produce larger, more branched root systems.

The root systems of young seedlings of agricultural plants also have another strong ally – the farmer. Besides the addition of fertilizer, farmers can help by applying growth stimulators. For example, auxins are found in many of the biostimulant products used to ensure good seedling establishment. One example would be Radiate®, which contains auxin and cytokinin and promotes increased root mass in seedlings.

Some farmers use humic acids and/or seaweed extracts to stimulate root development. Humic acids have recently been shown to stimulate the auxin signaling pathway in plants roots, and although the plant auxin IAA has been found in humic acids, researcher Sara Trevisan and her colleagues at the University of Padua, Italy, reported in 2010 that the auxin-like effect from humic acid treatments is not explained by the very small amount of IAA present. Seaweed extracts, especially those produced by marine brown algae, contain auxin and other plant growth regulators, but also contain carbohydrate polymers that could be acting as signaling molecules to promote growth. Another type of biostimulant product, Accomplish® LM, which is a natural soil additive produced through microbial fermentation, has very well documented effects on encouraging the development of root systems in young seedlings.

The signaling molecules generated from all of these agricultural products are providing messages that assist the transition zone of the root in making those critical decisions that affect when, where and how a root system develops.

So, is a germinating seedling a sentient being capable of assessing the environment and taking actions to benefit its survival? And is it actively interacting with its environment to better its circumstances? It appears so, based on the research summarized here. Stayed tuned as we follow the seedling on its sensory exploration the world in future posts.

Posted in Biostimulants

Communication Is Everything: Using Biostimulants to “Talk” to Plants

By Maud Hinchee, PhD, Chief Science Officer, Agricen Sciences

Dandelion.jpegHave you ever marveled at a dandelion that forced its way through an asphalt road to sunshine? Or have you wondered how a Venus fly trap knows when to snap its jaws shut to capture its prey? Or how that pesky sedgegrass in your lawn seems to come back in greater numbers in the face of herbicides and hand pulling? Plants, including crop plants, are constantly responding to their senses. They can see, touch, smell, taste and sense water, food and predators—and they can remember. Of course, they don’t do all of this exactly the way a human does, but they do respond to messages they receive from the world around them to survive, thrive and extend their family through reproduction—much the way we humans do.

This is a pretty stimulating idea – that plants are actually sentient beings responding to stimuli in a purposeful manner. The idea is nicely illustrated in the PBS series Nature, in an episode entitled What Plants Talk About. The program shows examples of plants demonstrating apparently “purposeful” behavior and communicating with each other as well as with potential friends and foes.

More recently, scientists convened to discuss plant behavior in July 2014 at the “Biostimulants and Plant Growth” meeting in Raleigh, North Carolina. They were interested in the use of a variety of naturally-derived products—in both in agricultural and horticultural applications—to signal plants through bioactive chemical messages to improve their growth, health and nutritional value.

These biostimulant products include humic and fulvic acids, seaweed extracts, protein hydrolysates, amino acids and microbial inoculants. Typically, such products are organically complex and are not completely characterized biochemically. This has meant that their positive impact on horticulture and agricultural production has been traditionally viewed with skepticism by many scientists.

However, one of the presentations at the conference offered a “reality check” as to whether these types of products have positive effects on plants. The presentation was based on a scientific review article by Dr. Joseph Kloepper of Auburn University, his PhD student Pamela Calvo and their colleague Agricultural Uses of Biostimulants in the May 2014 issue of the journal Plant and Soil.

We are just beginning to comprehend the significant potential of biostimulants as a way to communicate with plants – essentially “tipping them off” as to how to positively adjust to the environmental and biotic challenges typical of agricultural systems. I, along with other contributors, will further explore this fascinating area in a series of future posts.

Posted in Biostimulants, Agricultural Productivity, Soil Microbes

University of Kentucky Research Shows Microbially Derived Product Can Increase Plant Flavonoid and Lignin Content

Arabidopsis.jpgA study published in BMC Plant Biology demonstrated that SoilBuilder, a microbially derived soil additive, can increase the production of secondary metabolites in plants.

The study, which was conducted by researchers at the University of Kentucky, investigated how SoilBuilder application and timing of application (single or multiple times) influenced secondary metabolic responses by monitoring changes in the phenlypropanoid (PP) pathway in Arabidopsis thaliana.

Quantitative real-time PCR was used for transcriptional profiling of flavonoid and lignin pathway genes, and high performance liquid chromatography and liquid chromatography-electrospray ionization-quadrupole-time of flight-mass spectrometry were used to determine flavonoid content.

The results showed that application of SoilBuilder induced the phenlypropanoid pathway and there was a different response to treatment that was dependent on application timing. However, both single application and multiple applications of the microbial-derived product induced flavonoid and lignin content in Arabidopsis leaves compared to an untreated control.

You can read the full study here.

Citation: Ali MB, McNear DH Jr. Induced transcriptional profiling of phenylpropanoid pathway genes increased flavonoid and lignin content in Arabidopsis leaves in response to microbial productsBMC Plant Biol. 2014 Apr 1;14:84. doi: 10.1186/1471-2229-14-84.



Posted in Biostimulants

Agricultural Productivity and Microbial Technology (Ch 4): Measuring Microbial Functions

By Robert N. Ames, PhD, Scientist Emeritus, Agricen Sciences

Woman standing at the laboratory while holding a plant adding chemical to soil with syringe.jpegMicrobial communities in the soil are highly complex and interactive, but the scientific community has only a partial understanding of the functions, or even the identity, of the vast majority of these microorganisms. Even the better-studied ones offer us only glimpses of their functions and capabilities. Thus, we face a significant challenge in trying to define meaningful measurements for microbial functions, especially those that we can relate directly to sustainable crop productivity. Yet, as with any system, our ability to influence or manage microbial functions must be guided by quantifiable indicators. Earlier in this blog series, I described a “cycle” of responses to various impacts or stresses in a microbial system.  Within that context, it might be useful to illustrate a couple of examples of measurement approaches – one of which would be aimed at managing a negative (or deleterious) effect on the system and the other a beneficial effect. In either case, the measurement approach is aimed at developing management strategies to improve productivity through a positive shift in the cycle of the system.

The first example involves management of a targeted soil-borne plant pathogen. The measurement approach would be to quantify the population of the pathogen, and then relate that quantified level to an estimate of disease severity and subsequent impact on crop yield. Management strategies would then be developed to decrease the pathogen population and maintain it at a level well below that at which the pathogen would be considered to be of economic concern.

In this example, the initial population measurement represents an ambient level prior to taking action for disease control. A stress or impact on the microbial community is introduced by the application of a chemical or biological disease-control product aimed at the target pathogen, rotation to non-host crops or resistant varieties, employment of cultural practices that disfavor the pathogen, or some combination of these actions. Any resistance to a reduction in the pathogen population would be influenced by the forms of infective propagules in the soil, protection within crop residues, the type and amount of control material used, the length of time required for the control material to come into contact with the pathogen and function, and a variety of physical, chemical and environmental factors that may alter efficacy of the control material or disease development. The desired response of the system would be to reduce and hold the pathogen population at a level that would minimize disease. If our measurements are appropriate, then we should be able to quantify the effects of our strategies through each stage of the cycle, with the final success indicator being that of increased crop yield.

Obviously, our goal should include maintaining the system beyond the individual crop season. Our management practices should be geared toward preventing the restoration of the pathogen population and maintaining the resilience of the microbial system. That resilience would be highly dependent on the establishment and maintenance of a microbial community that helped to prevent disease and promote crop productivity.

The second example calls for management strategies to increase the presence and activity of microorganisms that provide beneficial functions to the system. An example of such a function might be phosphorus solubilization – that is, the array of activities that support increased phosphorus availability and uptake by the crop. In this case, our management strategies would be quite different from the plant pathogen example, but with the same goal of increased crop productivity. Thus, the strategy would be to promote the introduction and/or functioning of phosphate-solubilizing microorganisms. The ambient measurements could consist of quantifying particular phosphorus-solubilizing bacteria, measuring phosphatase enzyme activity, using a variety of molecular tools to directly or indirectly assess the microbial community capable of phosphorus mineralization, or simply measuring changes in plant-available soil phosphorus.  The impact event, as one approach or management strategy, could consist of the introduction of phosphorus-solubilizing microorganisms.  Here, the desired outcome would be to obtain minimal resistance to the establishment of the introduced microorganism and observe a measurable increase in the phosphorus solubilization response. As indicated in the diagram below, the management strategies employed would be directed at minimizing major fluctuations in the restoration or resilience stages so that the “new” ambient level for phosphorus solubilization would be higher than previous measurements. The cycle management strategies would also have to take into account that it is difficult to alter soil phosphorus chemistry and recognize the importance of preventing adverse environmental effects due to the off-site movement of phosphorus.

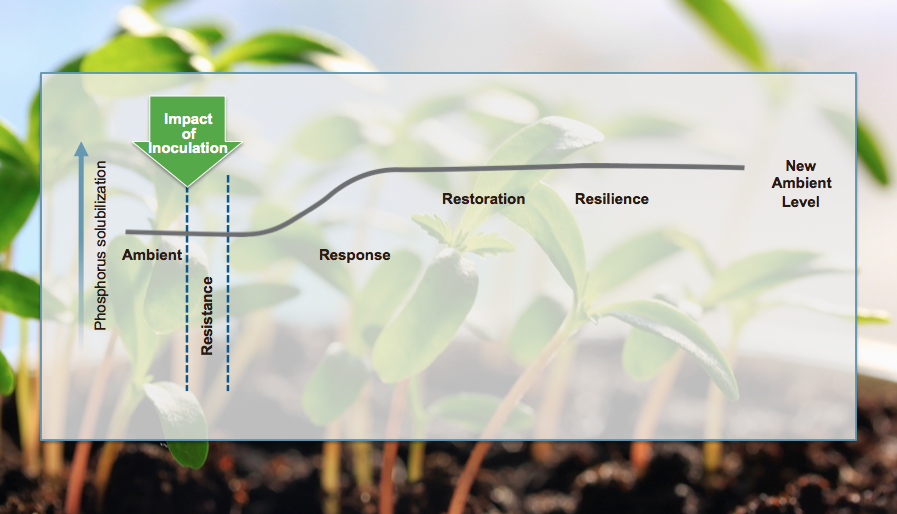

Ames Blog

Example of an ideal “impact cycle” due to inoculation with a phosphorus-solubilizing bacterium and potential for increased phosphorus availability to a crop.

From the above examples of measurements, we can see that there are many considerations and management strategies that come into play depending on the microbial system “cycles” and the desired objectives. In spite of the challenges, there are literally thousands of microbial functions in the soil that have the potential for management to benefit crops.

In the next and final blog entry in this series, I will discuss some reasons why agricultural productivity is, in fact, dependent upon microbial technology and identify some of the important benefits those technologies can provide.

Read other chapters: Ch 1, Ch 2, Ch 3

Posted in Biostimulants, Agricultural Productivity, Sustainability, Soil Microbes, Crop Stress

Agricultural Productivity and Microbial Technology (Ch 3): Changes in Microbial Response During the Growing Season

By Robert N. Ames, PhD, Scientist Emeritus, Agricen Sciences

Cornfield in November.jpegIn agricultural soils, the impact of farming on various species within microbial communities and their functioning may be beneficial or harmful. Many published studies have addressed this subject, comparing conventional, sustainable, organic, or a mixture of practices characteristic of these systems. The results clearly indicate that the different farming practices result in changes in microbial community composition; however, there are no clear correlations between these microbial changes and agricultural productivity.

To better understand how agricultural practices impact microbial communities, it may be helpful to provide a general diagram of microbial response. Key factors to keep in mind are that this “cycle” occurs frequently during the growing season and that the starting and ending points are constantly re-adjusting with every impact. Each cycle can be broken down into stages that I describe, and define below, as ambient, resistance, response, restoration and resilience. Supplemental reading on this topic can be found in articles by Bottom et al (2006) and Griffiths and Philippont (2012).

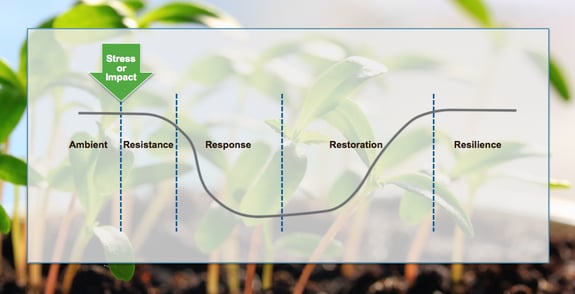

Ames Chart

In the definitions below, a “change” may be positive or negative based on a measured parameter or set of parameters used to assess microbial community composition or function.

Ambient:  The status of the soil’s microbial communities prior to an impact event.

Impact:  An event which induces a change in the microbial community.

Resistance:  When little or no detectable change occurs following an impact event.

Response:  The negative or positive change induced as the result of an impact.

Restoration:  The stabilization phase where the microbial community approaches a new ambient level.

Resilience:  The comparison of microbial functioning and composition determined before an impact event relative to the final stabilization stage where change is no longer measurable. Thus resilience is the degree to which the microbial community absorbed the impact or stress to the system.

To relate changes in soil microbial cycles to their subsequent effects on agricultural productivity, it’s necessary to decide on what, when, how and where measurements are taken. In subsequent blog posts, I’ll provide a couple of examples of measurements obtained before and after an impact event so that we can gain some perspective on how a crop may be affected as we move from the ambient to resilience stages.

Read other chapters: Ch 1, Ch 2, Ch 4

Posted in Biostimulants, Agricultural Productivity, Sustainability, Soil Microbes, Crop Stress

Agricultural Productivity and Microbial Technology (Ch 2): Understanding the Microbial Community

By Robert N. Ames, PhD, Scientist Emeritus, Agricen Sciences


Aerial city at night.jpegAs previously mentioned, we can recognize stress on agricultural crops fairly easily based on poor growth, wilting or disease symptoms. However, we rarely consider stresses on the functioning of microorganisms in the soil – mostly because they can’t be easily seen, and we don’t really understand how most of these organisms function. We do know that the life cycle of individual soil microorganisms is short and may be only a few hours or days for many of them. So any disturbance of the soil will have an impact on the microbes present and their functioning within the microbial community.

Before we start looking at stresses to microbes, I think it will be helpful to better understand the concept of the microbial community. Most of us have been in an airplane at night and have seen the lights of the cities below. At a high elevation, the cities look like separate clusters of lights, but when we get lower, we can see that they are actually interconnected with roads, power lines and cell towers. There are brightly lighted areas of high activity and less-lighted areas of the countryside.

This is how I envision microbial communities in the soil. There are areas of the soil where the microorganisms are very active, especially near and around plant roots – and there are areas well away from the roots or sources of nutrients where the organisms are less active. So the microbial communities can be large or small, but they are constantly interacting and communicating. Also, as with us in our individual communities, soil microorganisms that make up the microbial community have thousands of different jobs, skills and services that they perform.

Stresses or impacts to the microbial community can occur with any type of soil disturbance. Even common agricultural practices such as cultivation, irrigation or fertilizer application induces a change or stress on the functioning of microbial communities to which they must adjust. This is much like a major road construction project causing you to take another route to work or slowing your ability to travel across town.

In the next blog post, I will outline the various components of microbial stress response to help us understand how the microbial community may respond to these changes.

Read other chapters: Ch 1Ch 3Ch 4

Posted in Biostimulants, Agricultural Productivity, Sustainability, Soil Microbes, Crop Stress

Agricultural Productivity and Microbial Technology (Ch 1): Soil Microbe Stress Affects Crop Productivity

By Robert N. Ames, PhD, Scientist Emeritus, Agricen Sciences

Brown Plowed SoilMost who are involved in the agricultural industry understand that agricultural productivity is dependent on a variety of crop inputs, management practices and environmental factors that ultimately influence the quantity and quality of the crops harvested, as well as profits for the grower. In recent years, we’ve become very aware of the impact of environmental stresses due to drought, and even excessive rain, on crop yield. It has also been stressed that agricultural productivity must be considerably increased if we’re to meet the demands of an increasing population. Thus, the burden on the agricultural community is to produce more in a sustainable manner that minimizes adverse environmental affects and is minimally impacted by stress conditions. All of these present major challenges, with the ability to minimize environmental stress being the most difficult.

In this blog series, I’ll discuss the various stages of stress on the soil microbial community, how that relates to agricultural sustainability and productivity, and finally, how biostimulant technologies can help to reduce the stress cycle.

Stresses to crop productivity are usually thought of in terms of drought, hot or cold weather, nutrient deficiencies, pests and disease pressure and related issues. Generally, the soil’s involvement in crop stress is not considered unless issues such as compaction, poor or excessive water retention, or nutrient deficiencies become very apparent. Symptoms of crop stress are often readily observed and can occur fairly quickly during the growing season, while those of the soil may take many years to manifest themselves. Very little thought is given to the impact of stress on the soil microbial community and how that may impact crop stress and productivity.

But this is a topic worthy of further discussion and discovery, which I will explore in the next post.

Read other chapters: Ch 2, Ch 3Ch 4



Posted in Biostimulants, Agricultural Productivity, Sustainability, Soil Microbes, Crop Stress

Auburn University-Led Research Shows That Biochemical Technology Can Reduce Nitrous Oxide Emissions Associated with Nitrogen Fertilizer Applications

UAN application.jpgA study published in the Journal of Environmental Quality showed that SoilBuilder, a biologically derived biochemical product, reduces nitrous oxide (N2O) emissions associated with nitrogen fertilizer applications. The study was led by researchers at Auburn University, in collaboration with USDA-ARS and Agricen Sciences, and investigated how microbial-based treatments affect nitrous oxide emissions from agricultural soils. It is one of the first studies to evaluate the use of microbial-based inoculants for the purpose of reducing nitrous oxide emissions from soil combined with common agricultural nitrogen fertilizers.

The treatments investigated were SoilBuilder, a metabolite extract of SoilBuilder (SoilBuilder filtered - containing no microbial cells), and a mixture of four strains of plant growth-promoting Bacillus species. Experiments included two different N fertilizer treatments (urea and UAN 32%) and an unfertilized control. Nitrous oxide emissions were determined from soil incubations and analyzed with gas chromatography.

In soils fertilized with UAN, SoilBuilder reduced cumulative nitrous oxide emissions by 80% and its metabolite extract reduced emissions by 44% after 29 days of incubation. In the unfertilized treatment, SoilBuilder’s metabolite extract significantly reduced cumulative emissions of nitrous oxide by 92%. Microbial-based treatments did not reduce nitrous oxide emissions associated with urea application. Overall, the researchers concluded that microbial-based treatments can reduce nitrous oxide emissions associated with nitrogen fertilizer application, and that this response varies with the type of treatment and fertilizer.

Citation: Calvo P, Watts DB, Ames RN, Kloepper JW, Torbert HA. Microbial-Based Inoculants Impact Nitrous Oxide Emissions from an Incubated Soil Medium Containing Urea Fertilizers. J Environ Qual. 2013. doi: 10.2134/jeq2012.0300.

Posted in Biostimulants, Sustainability
